产品名称：MOLDED COILS TYPE
产品型号：MD-0605/0508/0708/0711/0913/1014
产品价格：0.0000
加入时间：2013-11-29
『详细描述』

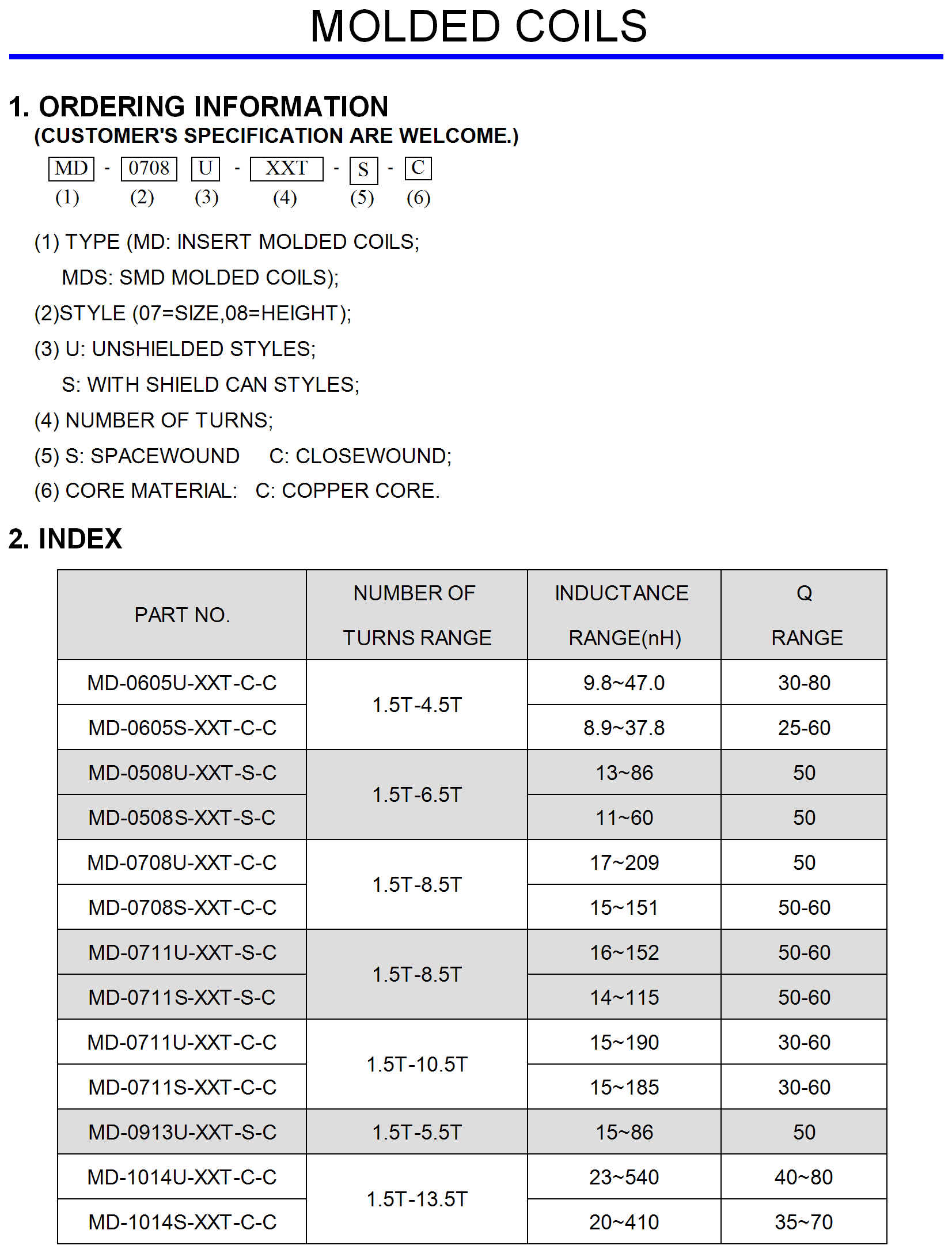

ORDERING INFORMATION:
(CUST MER'S SPECIFICATION ARE WELCOME.)
MD - 0508 U - XXT - S - C
(1) (2) (3) (4) (5) (6)
Ordering information:
(Customer's Specifications are welcome)
(1) TYPE (MD: INSERT MOLDED COILS;
MDS: SMD MOLDED COILS);
(2) STYLE (07=SIZE, 08=HEIGHT);
(3) U: UNSHIELDED STYLES;
S: WITH SHIELD CAN STYLES;
(4) NUMBER OF TURNS;
(5) (S: SPACEWOUND C: CLOSEWOUND;
(6) CORE MATERIAL: C: COPPER CORE.
Ordering information:
(Customer's Specifications are welcome)
